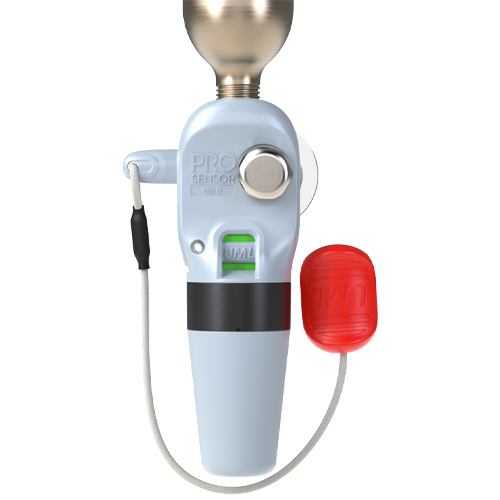

AUTOMATIC UML PRO Sensor Elite Actuator and Auto Cartridge

Specification

Standard Pull Cord Length 160mm.

Assembly (Body and Capsule)

UMA800-8050:  PSE Auto D Assembly 0.5 inch UNF 160mm

Capsule Only
• UMA8050 PSE Capsule
Standard automatic water-activated capsule fitted to the bottom of the PSE Head.
This contains no indicators or components that fall away.

Product description

The Pro Sensor Elite® Automatic Inflator provides additional improvement on the standard MK5 Automatic Inflator, affording the user one point of status indication to confirm that the unit has been automatically or manually activated. The unit also provides the added benefit of detecting if the Co² cylinder has been pierced, eradicating the possibility of accidentally fitting an empty gas cylinder.

As with the UML MK5 Inflator the great benefit of this inflation system is the functionality of the automatic override which under normal operating conditions activate within 3 seconds of the system being submerged in water. The automatic capsule contains a powerful spring which is compressed and retained in place using a paper element.

Once the paper element becomes wet, it releases the spring which pushes a plunger forward enabling a cutter to pierce the Co² gas cylinder. The Co² gas from the cylinder instantly passes through the inflator head, inflating the lifejacket.

The product is independently approved in accordance with the ISO12402 Part 7 standard requirement for lifejackets.
